Brands |
N/A Posi-flate® |
Fluid |
N/A Compressed air |
Minimum Output Pressure Range |
N/A 3 psig0.2 bar |
Maximum Output Pressure Range |
N/A 175 psig12.1 bar |
Note for Output Pressure Range |
N/A Depending upon configuration |
Normal Operating Temperature |
N/A -40 to 175 ºF-40 to 80 ºC |
Optimal Operating Temperature |
N/A -40 to 250 ºF-40 to 121 ºC |
Note for Operating Temperature |
N/A Air supply must be dry enough to avoid ice formation at temperatures below 35º F (2º C). |
Regulator Size |
N/A 1-1/4 in |

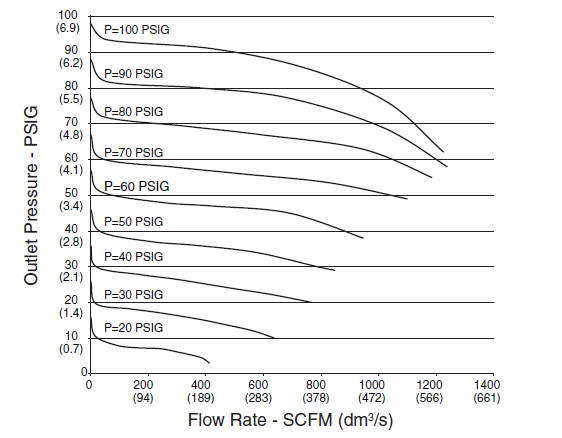

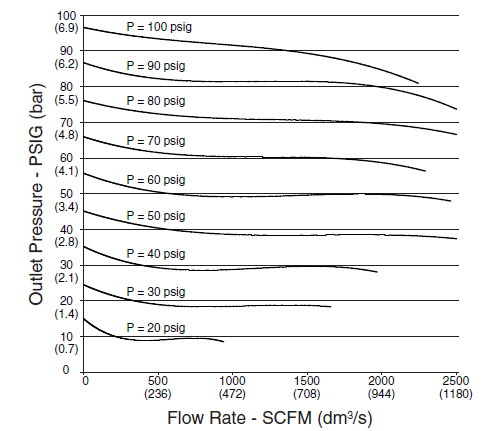

Maximum Flow Rate |
N/A 1100 scfm520 dm³/s |
Note for Flow Rate |
N/A Typical flow with 100 psig (6.9 bar) inlet pressure 90 psig (6.3 bar) set pressure and a drop of 15 psig (1 bar). |

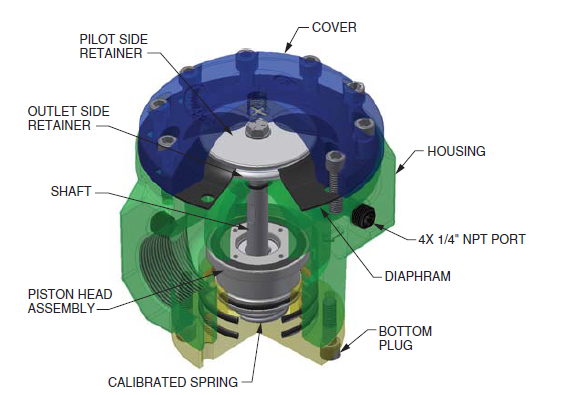

Material |
N/A
Body: Polyester-coated aluminum Bottom plug: Anodized aluminum Internal components: Anodized aluminum Elastomers: Nitrile |

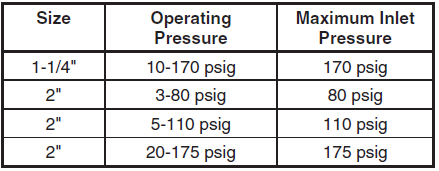

Maximum Inlet Pressure |
N/A
 |
Air Ports |
N/A
 |

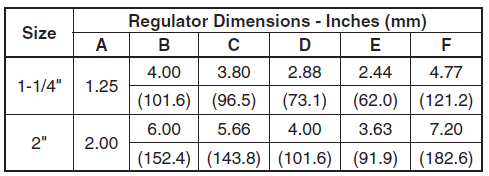

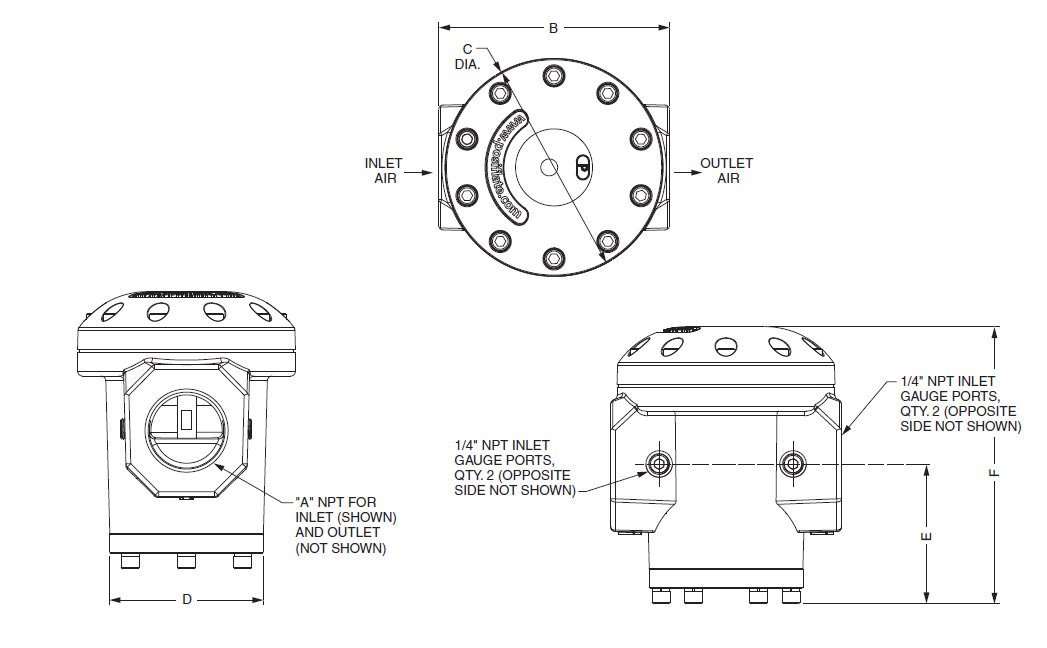

Dimensions |
N/A
 |
Features |
N/A
|
